⚡ Dual MPPT design
⚡ MPPT current 20A
⚡ IP66 high protection
⚡ 1.6 times DC over-matching
⚡Maximum efficiency 98.4%
⚡Applicable to lithium/lead-acid batteries
⚡ Intelligent charge and discharge control
⚡On-grid and off-grid switching time <10ms
Item NO. :
XD5-12KTRPower :
5kVA/6kVA/8kVA/10kVA/12kVAVoltage :
230V / 400VLead time :
30 DaysPayment :
T/TMOQ :
≥1Warranty :
5 Year WarrantyApplicable Scenarios :

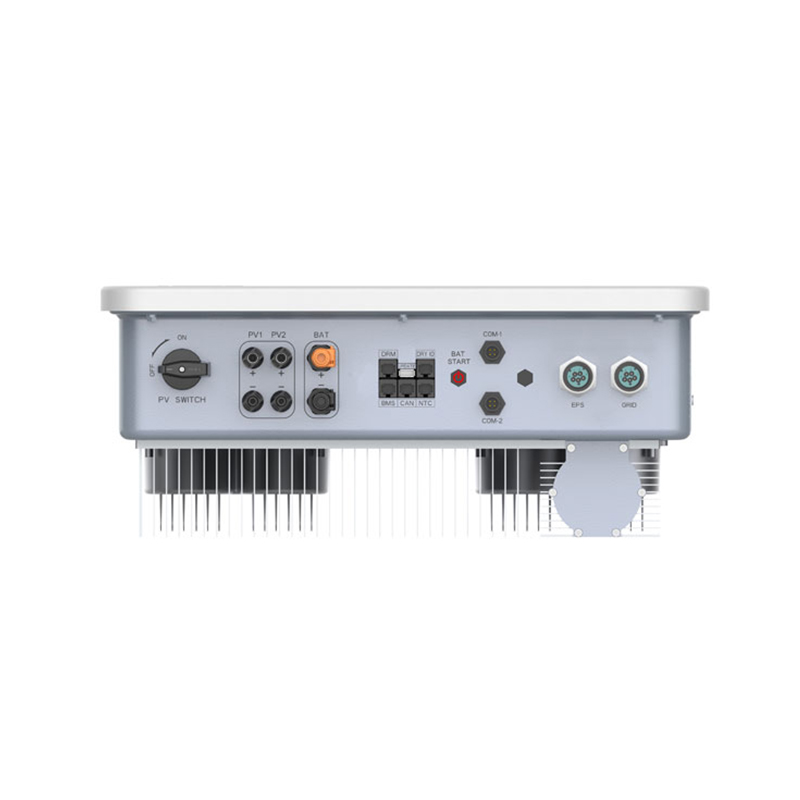

Residential5kW/6kW/8kW/10kW/12kW Three Phase Hybrid Inverter XD5-12KTR
XD5-12KTR three-phase energy storage inverter features a dual MPPT design and is compatible with 600W+ high-power modules, delivering efficient high-power output. It supports real-time online operation and maintenance with one-click worry-free management. The intelligent charge and discharge control allows users to enjoy green energy living. It is suitable for high-end villas, communication base stations, residential power supply, and other scenarios.
Enecell is Professional China Commercial 3 Phase Solar Inverters Supplier and Commercial Solar Inverters Manufacturer, Provide inverters of various specifications, compatible with single-phase and three-phase loads, support 100% unbalanced load, and the maximum efficiency can reach 98.4%.
Product Advantages
Efficient & Higher Revenue
˙ 160% DC input oversizing, Max. PV input current 20A
˙ Max. charge/discharge current 50A
˙ 110% output power oversizing, 200% peak output power
Intelligent & Simple O&M
˙ Smart I-V Curve Diagnosis Function: locate PV string faults accurately and automatically detect faults
˙ IP66 protection: support outdoor installation
˙ DC & AC type II SPD: prevent lightning damage
Flexible & Abundant Configuration
˙ Plug & play, EPS switching under 10ms
˙ AFCI function (optional): when an arc-fault is detected the inverter immediately stops operation
˙ Multiple working modes
Specification
| XD5KTR | XD6KTR | XD8KTR | XD10KTR | XD12KTR | |
| Input（PV） | |||||
| Max. Input Power | 8kW | 9.6kW | 12.8kW | 16kW | 19.2kW |
| Max. Input Voltage | 1100V | ||||
| Start-up Voltage | 160V | ||||
| Rated Voltage | 600V | ||||
| MPPT Voltage Range | 150V - 1000V | ||||
| Number of MPP Trackers | 2 | ||||
| Number of String per MPPT | 1/1 | ||||
| Max. Current per MPPT | 20A | ||||
| Max. Short Circuit Current per MPPT | 40A | ||||
| Output（AC） | |||||
| Rated Output Power | 5kVA | 6kVA | 8kVA | 10kVA | 12kVA |
| Max. Output Power | 5.5kVA | 6.6kVA | 8.8kVA | 11kVA | 13.2kVA |
| Max. Output Current | 7.2A | 8.7A | 11.6A | 14.5A | 17.4A |
| Rated Grid Voltage | 230V / 400V | ||||
| Rated Grid Frequency | 50Hz / 60Hz | ||||
| THDi(@Rated Power) | <2% | ||||
| Power Factor | 0.8 leading~0.8 lagging | ||||
| Output（EPS） | |||||
| Max. Output Power | 5.5kVA | 6.6kVA | 8.8kVA | 11kVA | 13.2kVA |
| Peak Output Power，Time | 10kW, 60s | 12kW, 60s | 16kW, 60s | 20kW, 60s | 20kW, 60s |
| Rated Voltage, Frequency | 230V / 400V, 50Hz | ||||
| THDv(@Rated Power) | ＜3% | ||||
| Switch Time | ＜10ms | ||||
| Battery | |||||
| Battery Type | Lithium, Lead-acid | ||||
| Battery Voltage Range | 120V - 600V | ||||
| Max. Charge / Discharge Current | 50A | ||||
| Communication | CAN | ||||
| Efficiency | |||||
| Max. Efficiency | 98.20% | 98.40% | |||
| EU Efficiency | 97.60% | 97.80% | |||
| Battery Charge / Discharge Efficiency | 97.60% | 97.80% | |||
| Protection | |||||
| DC Switch | Yes | ||||
| DC Reverse Polarity Protection | Yes | ||||
| Anti-islanding Protection | Yes | ||||
| AC Short Circuit Protection | Yes | ||||
| Residual Current Monitoring | Yes | ||||
| Insulation Resistance Monitoring | Yes | ||||
| Ground Fault Monitoring | Yes | ||||
| Over Current / Voltage Protection | Yes | ||||
| I-V Curve Scan | Yes | ||||
| Battery Soft Start Protection | Yes | ||||
| Surge Protection | Type II | ||||
| AFCI Protection | Optional | ||||
| Communication | |||||
| Display | LCD | ||||
| Communication | RS485 / CAN / WIFI / 4G / LAN / Bluetooth | ||||
| Standard Compliance | |||||
| Certification | IEC/EN 62109-1/2, IEC/EN 61000-1/3, EN50549, IEC 61727/62116, VDE 4105, CEI 0-21, UNE217001, UNE217002, RD647, NTS |
||||
| General Data | |||||
| Dimension（W x H x D） | 534 x 440 x 232 mm | ||||
| Weight | 27Kg | ||||
| Operating Temperature Range | -30℃～+60℃ | ||||
| Cooling Method | Natural | ||||
| Protection Degree | IP66 | ||||
| Max. Operating Altitude | 4000m | ||||
| Relative Humidity | 0~100% | ||||
| Self-consumption | ＜10W | ||||
| Topology | Transformerless | ||||
