⚡ String current 16A
⚡ IP66 high protection
⚡ Maximum efficiency 97.5%
⚡ Support multiple parallel operation
⚡Compatible with high-power components
⚡On-grid and off-grid switching time <10ms
⚡ Maximum charge and discharge current 100A
⚡Applicable to lithium battery/lead-acid battery
Item NO. :
XD 7-10KTLPower :
7kW/8kW/10kWVoltage :
230VLead time :
30 daysPayment :
T/TMOQ :
≥1Warranty :

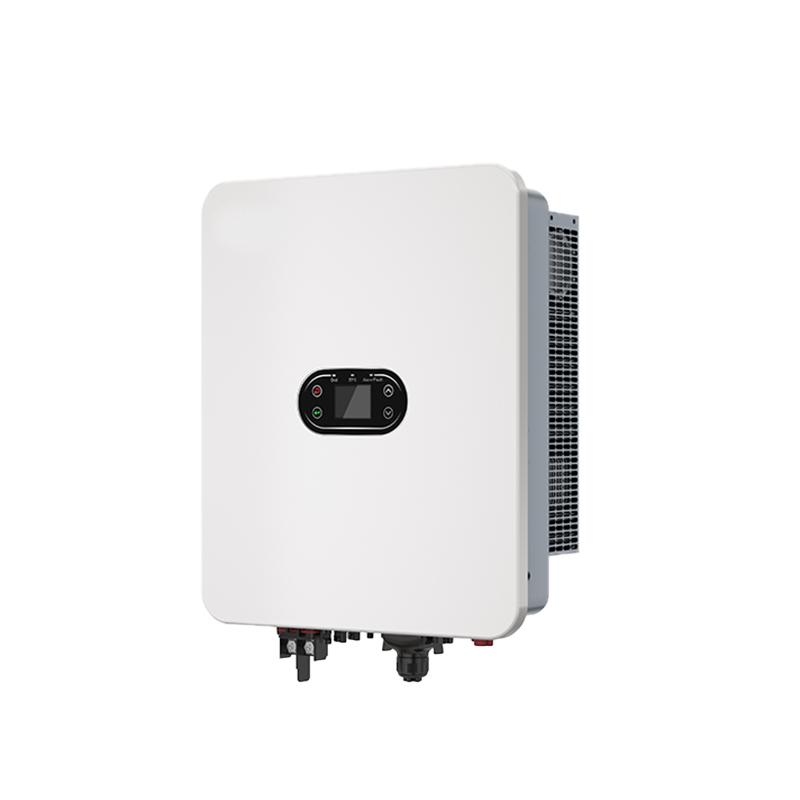

5 years7KW/ 8KW/ 10KW Single Phase Hybrid Solar Inverter
The XD7-10KTL single-phase energy storage inverter features a compact, lightweight design, making installation simple and versatile across various setups. With a maximum string current of 20A, it supports high-power modules, and its EPS switching time is under 10ms. It is compatible with both lithium and lead-acid batteries. Additionally, it comes with a standard diesel generator interface, supporting generator and Smart load connections, making it ideal for diverse home energy storage applications.
Enecell is one of Famous Single Phase Hybrid Inverter Manufacturer and Hybrid solar inverter Supplier,The XD7-10KTL single-phase low-voltage energy storage inverter has a string current of up to 16A and is compatible with power components. It supports greater off-grid load capacity, is compatible with mainstream battery brands, and has UPS-level switching levels to ensure stable operation of key equipment. It can be used in various household energy storage application environments, with the best cost-effectiveness, to meet your dual choice of efficiency and value.
Product Advantages
Efficient & Higher Revenue
˙ Max. Efficiency 98%
˙ 2 MPP Trackers,160% DC input Oversizing
˙Max. PVinput Current 20A, Compatible with High Power Modules
˙200% Peak Output Power at EPs Mode
Intelligent & Simple O&M
˙ IP66 Protection Degree
˙ SPD Type ll:DC & AC
˙ Support AFCl Function(Optional)
˙ Support Smart l-V Curve Diagnosis Function
Flexible & Abundant Configuration
˙ EPS Switching Time<l0ms
˙ Compatible With Lithium & Lead-acid Battery
˙ Support Work in Parallel Mode
˙ Support Diesel generator& Smart Load Connection
| XD7KTL | XD8KTL | XD10KTL | |
| Input(PV) | |||
| Max. PV Input Power | 11.2kW | 12.8kW | 16kW |
| Max. PV Input Voltage | 600V | ||
| Start-up Voltage | 100V | ||
| MPPT Voltage Range | 100V-550V | ||
| Number of MPPT Trackers | 2 | ||
| Number of String per MPPT | 2/1 | ||
| Max. PV Input Current | 40/20A | ||
| Output(AC) | |||
| Rated Output Power | 7kW | 8kW | 10kW |
| Max. Out Active Power | 7.7kW | 8.8kW | 11kW |
| Max. Output Current | 35A | 40A | 50A |
| Rated Voltage | 230V | ||
| Rated Frequency | 50Hz / 60Hz | ||
| THDi(@Rated Power) | <3% | ||
| Power Factor | 0.8 leading~0.8lagging | ||
| Battery | |||
| Battery Type | Lithium, Lead-acid | ||
| Battery Voltage Range | 40~60V | ||
| Max. Charge/Discharge Current | 160A | 190A | 210A |
| Output(EPS) | |||
| Max. Output Power | 7.7kVA | 8.8kVA | 11kVA |
| Max. Output Current | 35A | 40A | 50A |
| Peak Output Power, Time | 14kW,10s | 16kW,10s | 18kW,10s |
| Rated Voltage | 230V | ||
| THDv(@Rated Power) | < 3% | ||
| Switch Time | <10ms | ||
| Efficiency | |||
| Max. Efficiency | 98.00% | ||
| European Efficiency | 97.50% | ||
| Battery Charge / Discharge Efficiency | 97.00% | ||
| Protection | |||
| DC Reverse Polarity Protection | Yes | ||
| Insulation Resistance Monitoring | Yes | ||
| Ground Fault Monitoring | Yes | ||
| Over Current / Over Voltage Protection | Yes | ||
| Battery Soft Start Protection | Yes | ||
| AFCI Protection | Optional | ||
| Surge Protection | Type II | ||
| Communication | |||
| Display | LCD | ||
| Communication | RS485/CAN/WIFI/4G/Bluetooth | ||
| General Data | |||
| Dimension(WxHxD) | 440mm*530mm*250mm | ||
| Operating Temperature Range | -30℃~+60℃ | ||
| Self-consumption | <10W | ||
| Topology | High Frequency Insolation(For Battery) | ||
| Protection Degree | IP66 | ||
| Relative Humidity | 0~100% | ||
| Max. Operating Altitude | 4000m | ||
| Cooling Method | Smart Forced Air Cooling | ||
