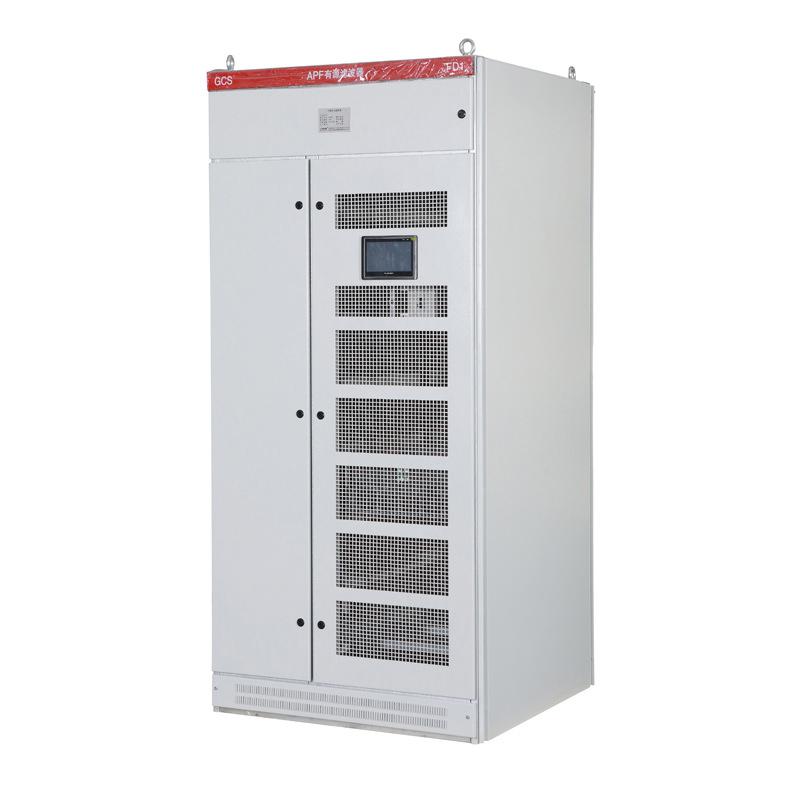

APF Active Power Filter

APF active power filter is a new type of power electronic device used for dynamic harmonic suppression and reactive power compensation. It can compensate for harmonics of varying magnitude and frequency and reactive power. It is widely used in distribution networks of industry, commerce and institutions.

APF active power filter is a new generation of harmonic control solution for dynamic harmonic filtering. It adopts advanced dynamic real-time tracking compensation to eliminate grid harmonics. It monitors the current waveform generated by nonlinear loads in real time, separates the harmonic part, and injects the falling wave current of relative magnitude and opposite direction into the grid to achieve the function of filtering harmonics.

Features

1.200V, 400V, 600V, 750V, the maximum capacity of a single unit in the whole cabinet can reach 600A

2. The faulty module does not affect the operation of the normal module, and it can be replaced with power, with extremely high reliability

3. It can dynamically filter out 2~50 harmonics in real time, and the effective filtering rate can reach 95%

4. The full response time is less than 10ms

5. Better control of flicker and voltage fluctuations

6. Unique ripple self-elimination technology, small ripple

7. High stability, design life of 20 years
