⚡ Integrated design of battery and inverter
⚡ Easier and more convenient installation
⚡ Simple and beautiful appearance, it looks more like a home appliance when placed at home
⚡ Mobile monitoring software to check the device status at any time
Item NO. :
CFE-PSeLead time :
30 DaysPayment :
T/TMOQ :
≥5Warranty :

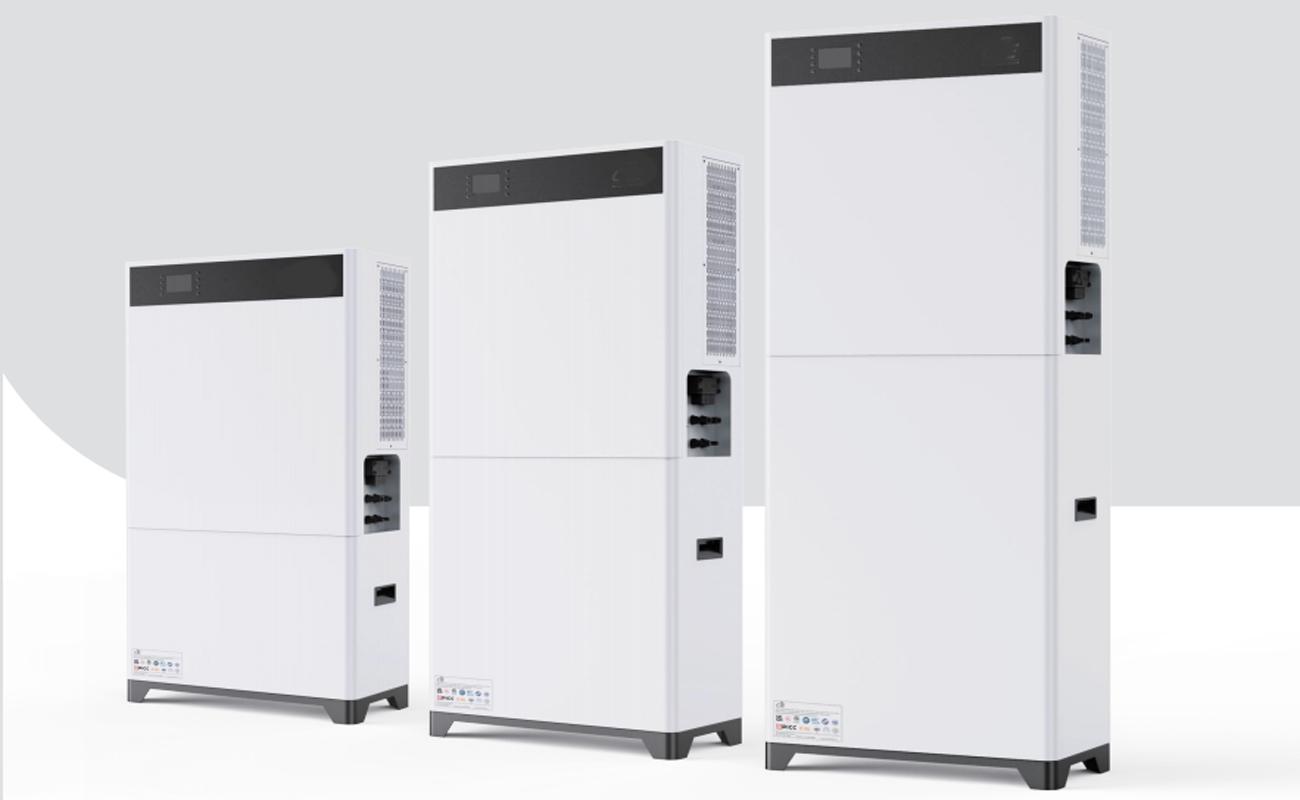

5 yearsCFE-PSe All in One Residential Battery Energy Storage System
⚡Highly Efficient and Flexible
• Battery inverter stacking design, easy installation
• Multiple models of batteries and inverters, free matching of configurations, capacity can be expanded according to demand
⚡Efficient Management
• Adoption of ultra-high energy density and cost-effective battery materials improves the energy utilization efficiency of the system
• Low no-load loss of the whole machine, high inverter efficiency
⚡Excellence In Quality
• Industrial frequency sine wave output, with utility complementary function
• Built-in PV MPPT controller, multiple MPPT configurations available
• Industrial frequency sine wave output, with utility complementary function
• Built-in PV MPPT controller, multiple MPPT configurations available
⚡Technological Lead
• Priority adjustable operating mode, selectable grid charging current, user-defined voltage
• Li-ion battery, designed for 6000 cycles
• Diesel generator can be connected
Product Parameters
| Mode | PSe5-5 | PSe5-10 | PSe5-15 | PSe10-10 | PSe10-15 |
| PV Input Parameters | |||||
| MPPT Voltage Range | 60V-230VDC | ||||
| PV Charging Current | 80A | ||||
| Max.Charge Current Adjustable | OFF/10A/30A/60A/80A | ||||
| MPPT Efficiency | ≥97% | ||||
| No.of MPPT Inputs | 1 | 2 | 2 | 2 | 2 |
| Max.MPPT Input Power | 3840W | 7680W | 7680W | 7680W | 7680W |
| Battery Parameters | |||||
| Battery Type | LiFePO4 | ||||
| Battery Voltage Range | 45V-56V | ||||
| Battery Capacity | 100Ah | 206Ah | 293Ah | 206Ah | 293Ah |
| Energy | 5120Wh | 10547Wh | 15001Wh | 10547Wh | 15001Wh |
| AC Output Parameters | |||||
| Rated Power | 5kW | 5kW | 5kW | 10kW | 10kW |
| Max.Power | 15kW | 15kW | 15kW | 30kW | 30kW |
| Output Voltage | 200V/210V/220V/230V240V Tuneable | ||||
| Inverter Output Waveform | Pure sine wave | ||||
| Output Frequency | 50Hz/60Hz | ||||
| Grid Output Voltage | 220VAC±10% | ||||
| Grid Output Frequency | Auto | ||||
| Energy Saving Mode Loss | 5W | ||||
| AC Input Parameters | |||||
| Grid Voltage | 220VAC:160-260VAC/130-280VAC Tuneable | ||||
| Grid Charging Current | OFF/15A/30A/35A/40A(OFF means the mains charging function is switched off) | ||||
| Grid Input Frequency | 45Hz-65Hz Auto | ||||
| Other Parameters | |||||
| Operating Mode | Utility Priority Mode,Battery Priority Mode,Energy Saving Mode,Unattended,Generator Mode | ||||
| Screen Working Mode | Normal Mode/Open Mode | ||||
| Screen Display Language | CN/EN (Optional) | ||||
| Conversion Time | <5ms | ||||
| Heat Dissipation Mode | Intelligent temperature control | ||||
| Operating Temperature Range | 0℃~40℃ |
||||
| IP Level | IP20 | ||||
| Altitude | ≤3000m | ||||
| Size(W*D*H) | 570*250*1017 | 570*250*1170 | 570*250*1370 | 570*250*1170 | 570*250*1370 |
