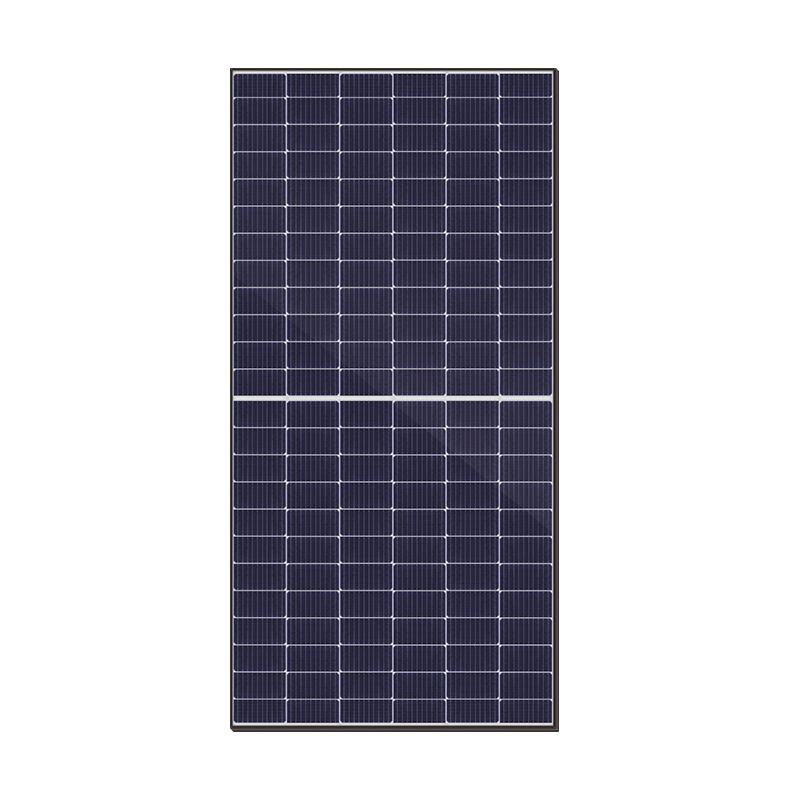

545W 550W Monocrystalline PERC Solar Panel For Home

⚡ Double-layer antireflection film

⚡ Non-Destructive Cutting (NDC)

⚡ Laser Welding Technology

⚡ Higher Power Output

⚡ Multi Busbar Tech

⚡ PID Resistance

⚡ Low-light Performance

⚡ Environmental Durability

⚡ EL Full Inspection



  • Item NO. :

    RM-560W-182M/144
  • Certificate :

    CE,CEI,CQC
  • Lead time :

    30 Days
  • Payment :

    T/T
  • MOQ :

    ≥200
  • Warranty :

    25 years

545W 550W Monocrystalline PERC Solar Panel For Home



The N-TOPCon Monocrystalline 550W Solar Panel offers enhanced efficiency and durability through advanced technologies. Its double-layer antireflection film improves light transmittance, providing a sleek all-black look while boosting energy output.

Enecell is Bifacial Solar Panel Manufacturer, Wholesale high quality 535W-560W Home Solar Panels, Additionally, the use of non-destructive cutting and precise laser welding ensures reliable cell integrity and long-lasting performance, making it ideal for both residential and commercial installations.



Product Advantages



Light Redirecting Film:

Glass plated with double-layer antireflection film, this innovative technology can effectively improve light transmittance, bringing a more consistent all-black effect to the appearance of the module.



No-Destructive Cutting:

NDC (non-destructive) cutting technology is used, providing a smooth cutting surface that avoids the loss of the mechanical structure of the cells and ensures sufficient current.



Junction Box Laser Welding Technology:

High energy density and precise positioning control capabilities of the laser are used to achieve high-quality welding. It accurately controls the junction box welding position and welding time to ensure welding quality and reliability, improving module safety.

Specification



ELECTRICAL CHARACTERISTICS (STC*)

Rated Power in Watts-Pmax(Wp) 535
540 545
550 555
560
Open Circuit Voltage-Voc(V) 49.52 49.69 49.90 50.10 50.25 50.4
Short Circuit Current-lsc(A) 13.78 13.86 13.90 13.95 13.99 14.05
Max.Power Voltage-Vmpp(V) 41.55 41.72 41.90 42.10 42.25 42.4
Max Power Current-Impp(A) 12.88 12.95 13.02 13.07 13.15 13.21
Module Efficiency(%) 20.70 20.89 21.09 21.28 21.48 21.66

STC: Irradiance 1000W/m², Cell Temperature 25℃, Air Mass AM 1.5,
NOCT: Irradiance at 800W/m², Ambient Temperature 20°C, Wind Speed 1m/s.



MECHANICAL DATA

Solar Cells Monocrystalline
Cell Size 182mm×91mm
Cell Configuration 144 cells (6×12+6×12)
Module Dimensions 2279×1134×35mm
Weight 28.6kg
Glass High Transmission, Low lron, Tempered ARC Glass 3.2mm
Back Sheet White
Frame Anodized Aluminium Alloy type 6005 T6, Silver Color
J-box PV-RM01, IP68, 1500V DC, 3 Diodes
Cables 4.0mm², (+) 300mm, (-) 300mm ( Connector Included )
Connector MC4-compatible



TEMPERATURE & MAXIMUM RATINGS

Nominal Operating Cell Temperature (NOCT) 44℃ ± 2℃
Temperature Coefficient of Voc -0.27%/℃
Temperature Coefficient of Isc 0.04%/℃
Temperature Coefficient of Pmax -0.36%/℃
Operational Temperature -40℃ ~ +85℃
Max. System Voltage 1500V DC
Max. Series Fuse Rating 25A



PACKAGING CONFIGURATION

Height of Modules (mm) 35  30
Number of Modules Per 40ft (HQ)Container 620 720
Number of Modules Per Pallet 31 36
Number of Pallets Per 40ft (HQ) Container 20 20
Packaging Box Dimensions (l×w×h) (mm) 2300x1120x1260 2300x1120x1260
Box Gross Weight (kg) 916 1059





Linear Performance Warranty

12-year product warranty / 25-year linear power warranty



Low-light Performance

Excellent performance in low light.

Durability Against Extreme Environmental Conditions

High salt mist and ammonia resistance certified by TUV NORD.

EL Full Inspection

Dual-stage 100% EL Inspection.


Most Advanced Production Technologies

Optimize module current profile,improve system-side power generation.





Higher Power Output

Module power increases by 5-25% generally, bringing significantly lower LCOE and higher IRR. 0-5w positive tolerance output warranty.

Multi Busbar Technology

By improving optical utilization rate, power increases by 2~3% and efficiency increases by 0.4~0.6%.

PID Resistance

Excellent Anti-PID performance guarantee via optimized mass-production process and material control.


Enhanced Mechanical Load

Certified to withstand: wind load (2400 Pa)and snow load (5400 Pa).





Dimensions of PV Module





RM-560W-182M/144

I-V characteristics at different irradiations

Cells temp.=25°C



I-V characteristics at different temperatures



Certification


IEC61215/IEC61730/IEC61701/IEC62716
ISO 9001: Quality Management System
ISO 14001: Environmental Management System
ISO14064: Greenhouse Gases Emissions Verification
OHSAS 18001: Occupational Health and Safety Management System
