Solid insulating materials are selected as the main insulating medium, and all high-voltage live parts are encapsulated with solid insulating medium. The product has no internal arcing and can operate safely under all working conditions. It replaces the inflatable fully insulated ring network cabinet, which is safer and more environmentally friendly.
Application Areas
l Safety and environmental protection: no gas leakage and greenhouse effect risk, good environmental performance, maintenance-free.
l Strong environmental adaptability: the fully sealed insulation structure with integral epoxy resin casting has reliable insulation performance and strong environmental adaptability, suitable for working under various working conditions.
l Modular design: small size, light weight, flexible product, conducive to on-site assembly; for remote areas with poor road traffic conditions, it can be disassembled for transportation and then assembled, making the transportation and installation methods diversified.
l Five-protection interlocking: high-reliability interlocking design, realizes five-protection locking function, and meets safety needs.
l Intelligent monitoring: provides an intelligent distribution system with supporting protection, remote control, monitoring, intelligent fault handling and other functions to meet the requirements of smart grids.

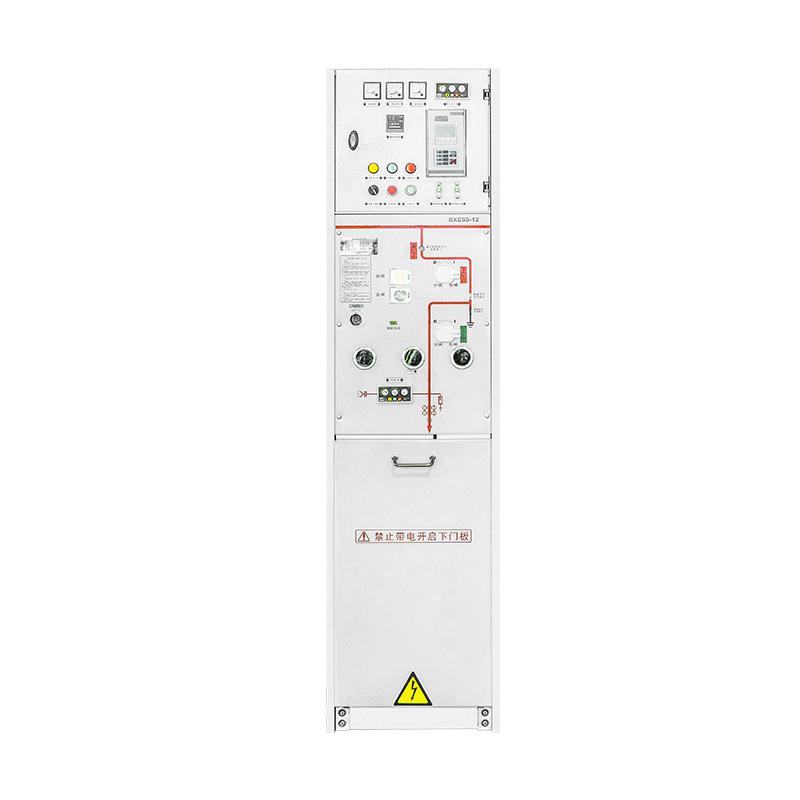

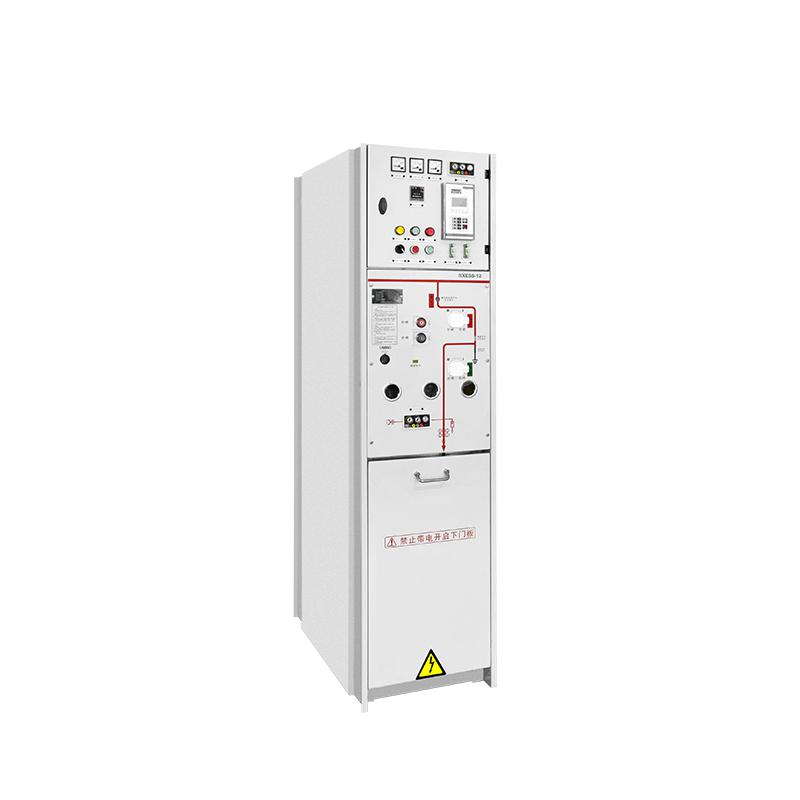

GXGN-12 series is a new generation of compact solid insulation ring main unit with high level of operation safety. It is used in distribution network as the core unit of distribution network. All high voltage live parts are cast with high quality insulation materials. It ensures the safety of operation, inspection and maintenance.
Solid insulation is fully adopted, and there is no pressure rise caused by internal short circuit and explosion causing casualties; three-phase integrated solid insulation installation, grounding switch visualization, reliable mechanical and electrical interlocking.
