High Voltage 51.2V Stackable Lifepo4 Lithium Battery GRP2.56-SHV For Commercial

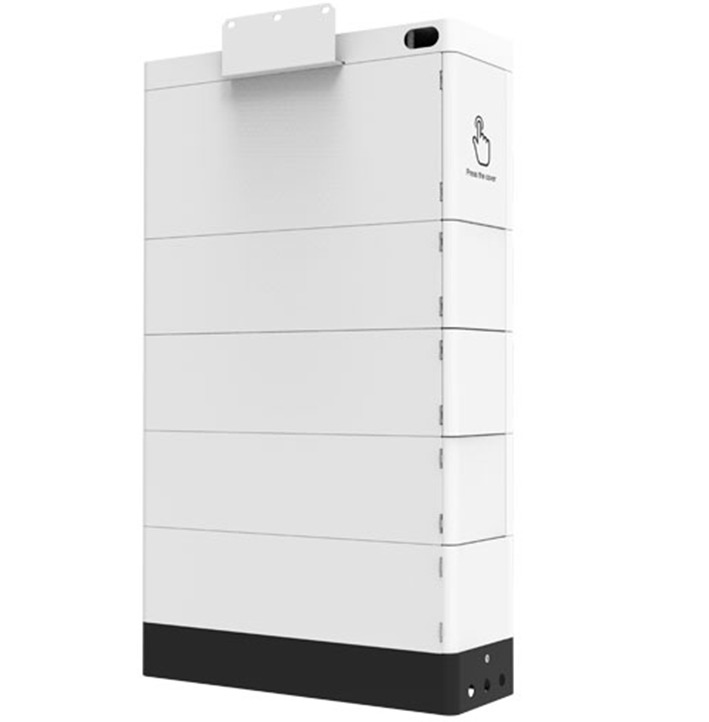

High Voltage Stackable Battery GRP2.56-SHV

Enecell is Famous China Stackable Lifepo4 Lithium Battery Suppliers, High Voltage Stackable Lithium Battery Manufacturers.The High Voltage Stackable Battery GRP2.56-SHV is designed for flexible and scalable energy storage solutions, making it suitable for both residential and commercial applications. Its modular design allows for easy stacking of 3 to 10 layers, ensuring customizable energy capacity to meet various power demands. Equipped with cobalt-free lithium iron phosphate (LFP) cells, this battery delivers maximum safety and a long lifecycle.

Operating in a wide temperature range from -20°C to 60°C, the GRP2.56-SHV performs reliably in diverse climates. Compatible with the XD5-12KTR inverter, this battery is ideal for integrating into high-performance energy storage systems, offering enhanced reliability for off-grid and backup power scenarios.

Product Advantages

Cobalt-Free LFP Cells:

Utilizes advanced, cobalt-free lithium iron phosphate (LFP) battery cells for enhanced safety, longer life cycles, and environmentally friendly energy storage.



Modular Design:

Offers flexible stacking options from 3 to 10 layers, allowing for tailored capacity configurations to meet various energy needs, simplifying installation and scalability.



Wide Temperature Range:

Ensures stable and reliable operation, with an impressive discharge temperature range from -20℃ to +60℃, ideal for diverse environmental conditions.



XD5-12KTR Inverter Compatibility:

Engineered for seamless integration with the XD5-12KTR energy storage inverter, optimizing performance for high-voltage energy systems.

Products Specification



	GRP2.56-S3HV	GRP2.56-S4HV	GRP2.56-S5HV	GRP2.56-S6HV	GRP2.56-S7HV	GRP2.56-S8HV	GRP2.56-S9HV	GRP2.56-S10HV
Battery Parameter
Battery Cell	LiFePO4
Battery System Capacity	7.68kWh	10.24kWh	12.8kWh	15.36kWh	17.92kWh	20.48kWh	23.04kWh	25.6kWh
Module number	3	4	5	6	7	8	9	10
Nominal Capacity	50Ah
Depth of Discharge	90%
Nominal Voltage	153.6V	204.8V	256V	307.2V	358.4V	409.6V	460.8V	512V
Voltage Range	129.6～168.48 Vdc	172.8~224.64 Vdc	216~280.8 Vdc	259.2~336.96 Vdc	302.4~393.12 Vdc	345.6~449.28 Vdc	388.8~505.44 Vdc	432~561.6 Vdc
Nominal Charge/ Discharge Current	50A
Dimension (W x H x D)	600x820 x210mm	600x980x210 mm	600x1140x210 mm	600x1300x210 mm	600x1460x210 mm	600x1620x210 mm	600x1780x210 mm	600x1940x210 mm
Weight	102.5Kg	129Kg	155.5Kg	182Kg	208.5Kg	235Kg	261.5Kg	288Kg
Installation	Stacked
Temperature of Charge	0 ~ 55℃
Temperature of Discharge	-20℃ ~ +60℃
Protection Degree	IP65
Communication Port	RS485, CAN
Display	LED
Operation Humidity	5% ~ 95%
Max. Operating Altitude	2000m
Cycle Life	6000@80% DOD, 25℃, 0.5C
Certification	CE, CB, UN38.3, MSDS
