JP Low Voltage AC Integrated Distribution Box

JP low-voltage AC integrated distribution box is a comprehensive power distribution product installed on the low-voltage side of the transformer, integrating power distribution, metering, protection, control, and reactive power compensation. It consists of three parts: switch room, metering room, and compensation room. The main components include circuit breakers, metering and measuring current transformers, electric energy meters and data acquisition terminals, power distribution integrated control terminals, capacitor switching units, and self-healing low-voltage shunt capacitors. The integrated distribution cabinet is widely used in substations, factories, industrial and mining enterprises, large power plants, petroleum, chemical enterprises, large steel mills, high-rise building power centers, reactive power compensation, metering, power distribution, and other occasions due to its advantages in power distribution, control, management, harmonic control, and reactive power compensation.

JP integrated distribution box is designed based on the requirements of power grid construction and transformation and the experience of power grid operation, in line with the principles of safety, economy, rationality and reliability. It is a new type of outdoor integrated distribution box with multiple functions such as power distribution, control, protection, reactive power compensation and power metering. The product has the advantages of novel and reasonable structure, high protection level, convenient installation, commissioning, maintenance and overhaul, etc.

Technical parameters

●Rated voltage: 400V, rated frequency: 50Hz

●The capacity of the transformers are: 10, 20, 30, 50, 63, 80, 100,

125, 160, 200, 250, 315, 400, 500, 630 (KVA)

●Capacitor grouping: generally divided into 2, 3, 4, 5 levels, if the user has special requirements, according to the user's requirements

●Feeder circuit: generally divided into 2 channels, each channel is configured according to 80%~100% of the total capacity of the transformer, if the user has special requirements, according to the user's requirements

●Compensation method: cyclic switching, coding switching, fuzzy control automatic switching

●Controlled physical quantity: reactive power or reactive current

●The most

Structural features

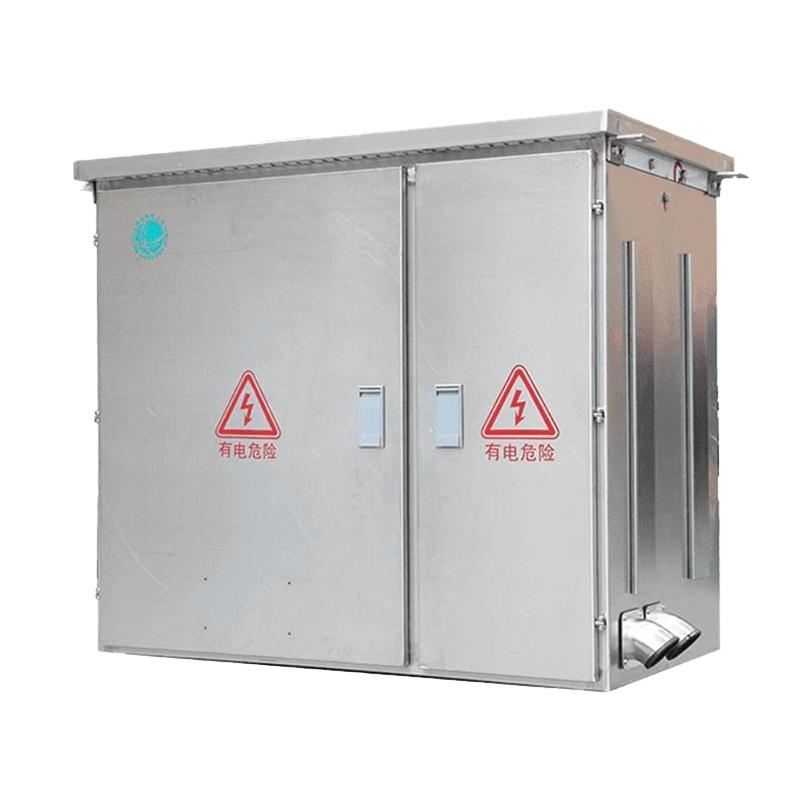

The product shell uses a stainless steel IP44-level box, which is corrosion-resistant and rainproof.

The box has a reasonable design and a solid structure, giving it a sense of exquisiteness and is customizable.

The wiring inside the box is reasonable and simple, and the customer's wiring is simple and quick.
