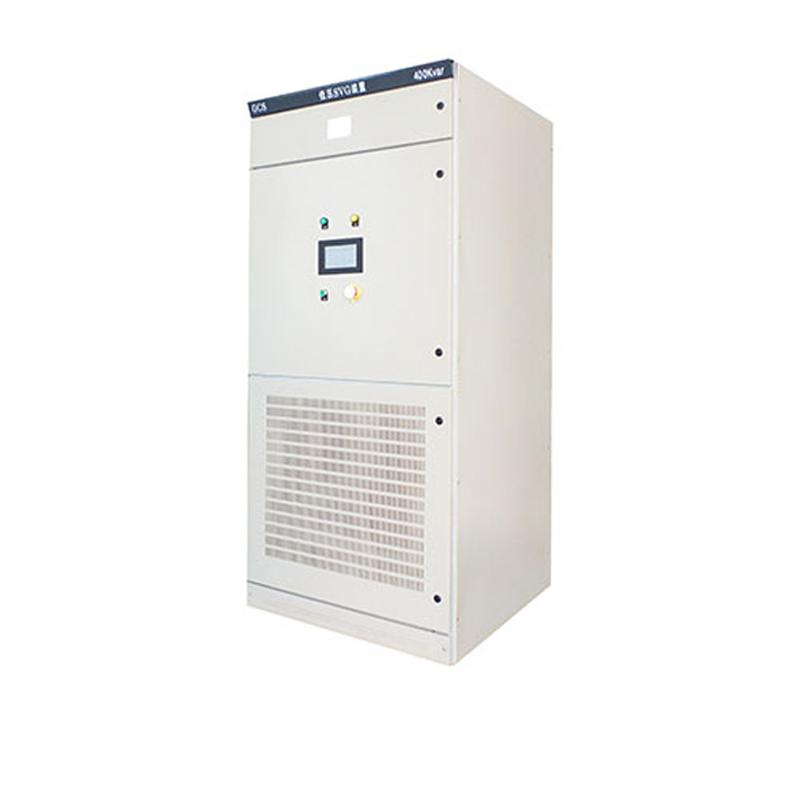

Static Var Generator SVG

SVG static reactive power generator is the best solution in the field of reactive power control. Compared with traditional phase regulators, capacitor reactors, and traditional SVC represented by thyristor controlled reactors TCR, SVG has incomparable advantages and is widely used in the metallurgical industry, petroleum industry, rail transportation, and automobile manufacturing industry.

l High efficiency: The power factor after traditional compensation is generally around 0.8-0.9, and the power factor after SVG compensation is generally above 0.98.

The SVG series static VAR generator collects current signals in real time through an external current transformer, separates the reactive components through an internal detection circuit, and generates capacitive or inductive fundamental current through an IGBT power converter, thereby achieving the functions of compensating reactive power and improving power factor.

Features

1. Modular design, each module unit can compensate reactive power and three-phase imbalance separately or simultaneously;

2. Strong ability to control grid voltage fluctuation and flicker;

3. PWM interleaving technology is adopted, and its own harmonics are extremely low;

4. Fast response speed, less than 5ms;

5. Low power consumption and small footprint;

6. Increase capacity, reduce loss, and purify the grid;

7. Design life of 20 years;

8. Modular structure design, easy to install and maintain.
