●Large capacity,high-strength metal shell lithium iron phosphate battery,sufficient capacity
●Charging equalization function SOC(battery current storage status),SOH (battery current health status)estimation function
●LED status indication function,LED real-time display SOC function
●Low power consumption,and has a variety of sleep and wake-up modes
●Adjustable over current protection,short circuit protection,buzzer alarm
●High voltage accuracy(<20mV),high current accuracy(<2%FS),battery temperature detection(<2℃)
●With parallel communication function,RS485 communication and host computer monitoring function,and CAN communication
●With battery pack capacity and cycle count calculation function.
Item NO. :
LB - SeriesCertificate :
CE / ULLead time :
30 DaysMOQ :
≥10Payment :
T/TWarranty :
1 year
Home Energy Storage System Sustainable Power Backup Supply

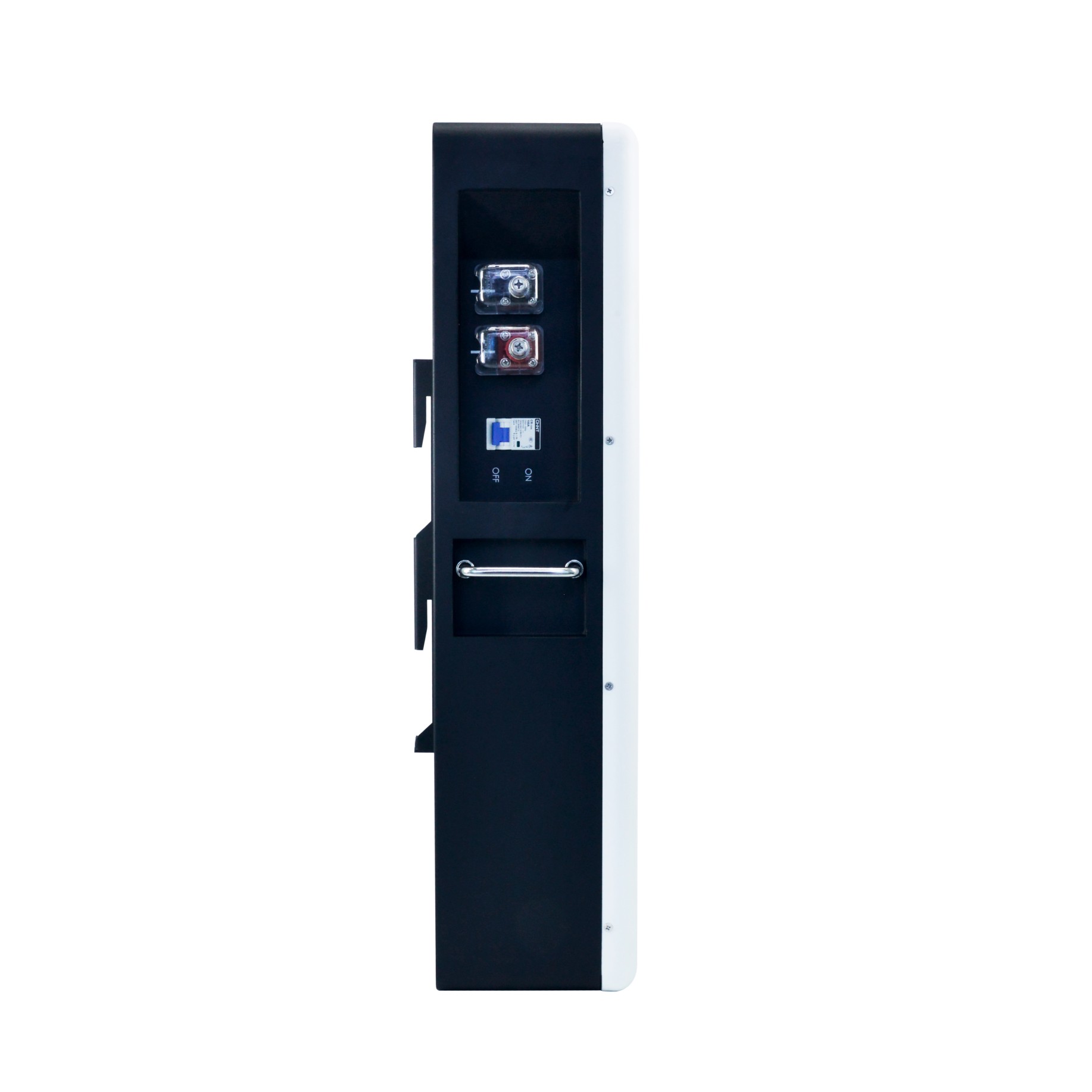

The Wall-Mounted Lithium Iron Phosphate (LiFePO4) Battery for Home is a compact, high-capacity energy storage solution designed to provide reliable and efficient power for residential use. It offers ample energy storage to meet the needs of modern households, ensuring uninterrupted power supply during outages or for off-grid living. The LiFePO4 technology ensures enhanced safety, longer lifespan, and stable performance compared to traditional lithium-ion batteries. Its wall-mounted design saves space and makes installation easy and convenient, while its robust build guarantees long-term, reliable energy storage. Ideal for homeowners seeking a durable, safe, and efficient backup power solution, this battery offers a sustainable way to store and manage energy.
Product Characteristics

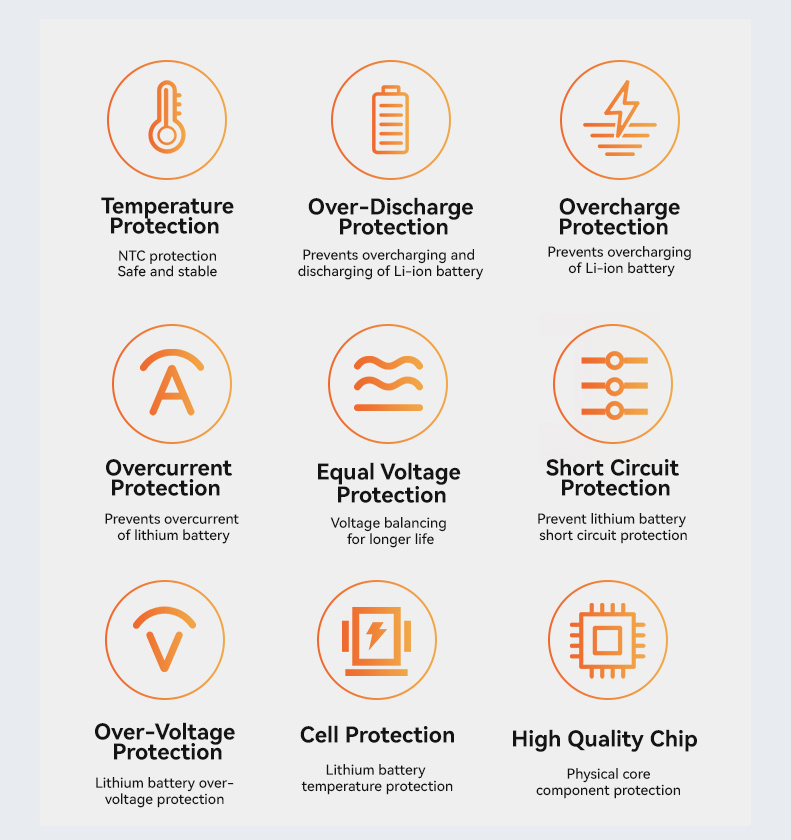

Using Highly stable Lithium Battery,with CE,UL Certification;with voltage,current temperature detection and protection functions,short circuit protection functions,and anti reverse connection functions;
It has the function of calculating the battery pack capacity and the number of cycles; a wide operating temperature range, the discharge temperature range can reach -20℃~50℃;
It has a weak current switch, sleep and wake-up function, and charging wake-up function; charging current limiting and pre-charging function, and multiple products (new and old batteries) parallel function; it can be customized;
Lead-acid batteries can be mixed and connected in parallel; built-in automatic fire extinguishing device, the product is safer.
| Model | LB100AH/51.2VTA | LB230AH/51.2VTA | LB300AH/51.2VTA | LB230AH/25.6VTA |
Cell chemical formula |
LiFePO4 | |||
| Maximum continuous discharge current | 100A | |||
| Available capacity | 5120Wh | 11776Wh | 15360Wh | 5120Wh |
| Rated voltage | 51.2VDC | 25.6VDC | ||
| Voltage range | 43.2V-58.4VDC | 21.6V-29.2VDC | ||
| Maximum output power | 5120W | |||
| Maximum charging voltage | 58.4V±0.2VDC | 26.2V±0.2VDC | ||
Recommended charging voltage |
57.6V±0.2VDC | 27.8V±0.2VDC | ||
| Recommended charging current | 100A | |||
| Number of cycles(standard charge and discharge at room temperature) |
≥5000 times | |||
| Low power mode | Work self depletion≤50mA,Low power mode<200uA | |||
| Communication | Standard configuration RS232、RS485、CAN | |||
Battery discharge depth (DOD) |
≥95% | |||
Modules connect |
1-5 | |||
| Terminal type | M8 | |||
Display screen |
LED Light strip display+LCD display | |||
Operating temperature range |
Discharge:-10℃-+50℃;Charge:+0℃-+60℃ | |||
| Storage temperature | >1 month,0-35℃;≤1 month,-20-45℃ | |||
| N.W/KG | 54.5kg | 98.8kg | / | 54.5kg |
| L×W×H(mm) | 720*480*170mm | 750*480*320mm | / | 720*480*170mm |
Product Advantages
1.Home Energy Storage System Sustainable Power Backup Supply
When the grid is off, storage system can automatically switch to battery power supply, keeping house power never off.
2.High Quality A-Gradge Battery Cell
Top 3 brand battery cell, Over 5000 cycles time 95% battery discharge support, Low power consumption, smart battery management.
3. Battery Management System (BMS)
Real time management to voltage, current, temperature and other parameters. Provide the best work status to make the battery proper use.
4.Smart Battery Management System
Accurate Data Comprehensive Protection
5.Support 15 units in parallel
Support multiple products (new and old batteries) parallel function;optional parallel function with lead-acid battery.
Application
